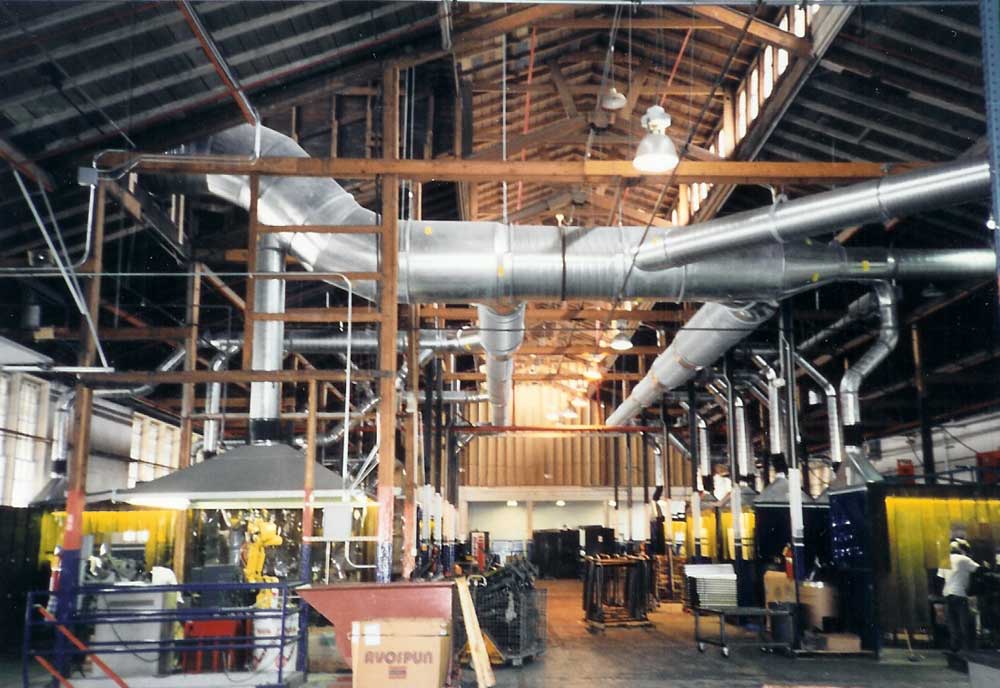

A manufacturer of exercise equipment contracted with EAS to design and install a ventilation / filtering system for their fabrication shop. Custom designed hoods capture welding fume from both manual and robotic welding.

Click on this picture for a larger view

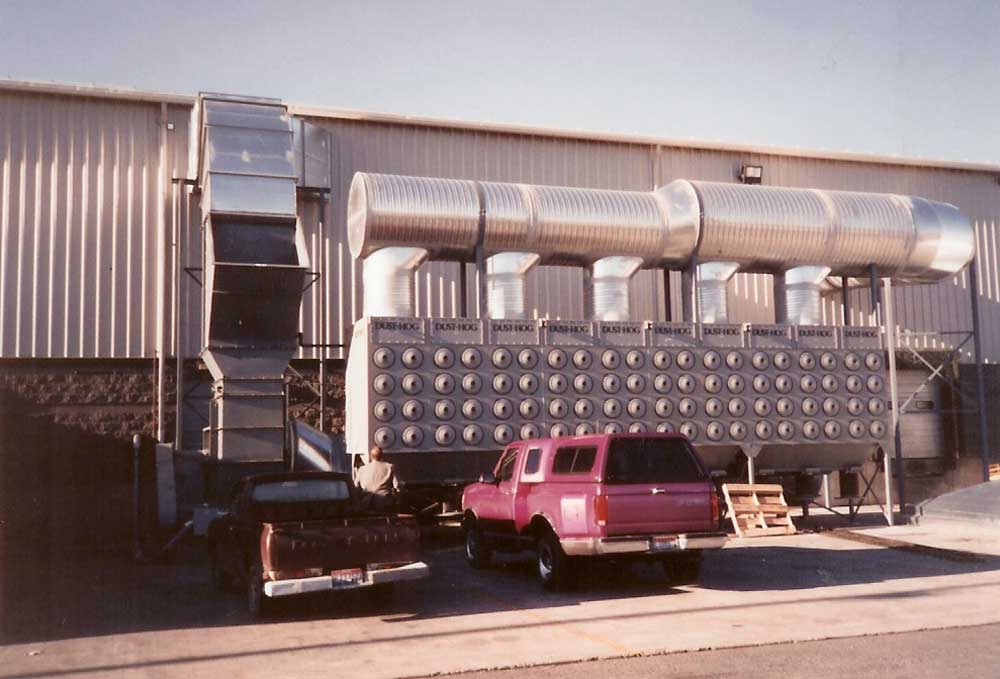

Outside view shows the cartridge type filter system used. Efficiency is 99.9% at 1 micron. Fan is a 250 hp unit rated for 85,000 cfm. Note the air diverter on fan outlet that allows all or a partial amount of filtered air be returned to the shop.
